34S Metal Oxide Varistor

Oxide Varistor 385v SPD House Surge Protector Ceramic Datasheet Protective Factory Direct Sale DC AC Metal as Request UL E335803 High Voltage Power Surge Protector Metal Oxide Varistor 34S-C-LV U1MA(V):80-1800 UAC:60-1000

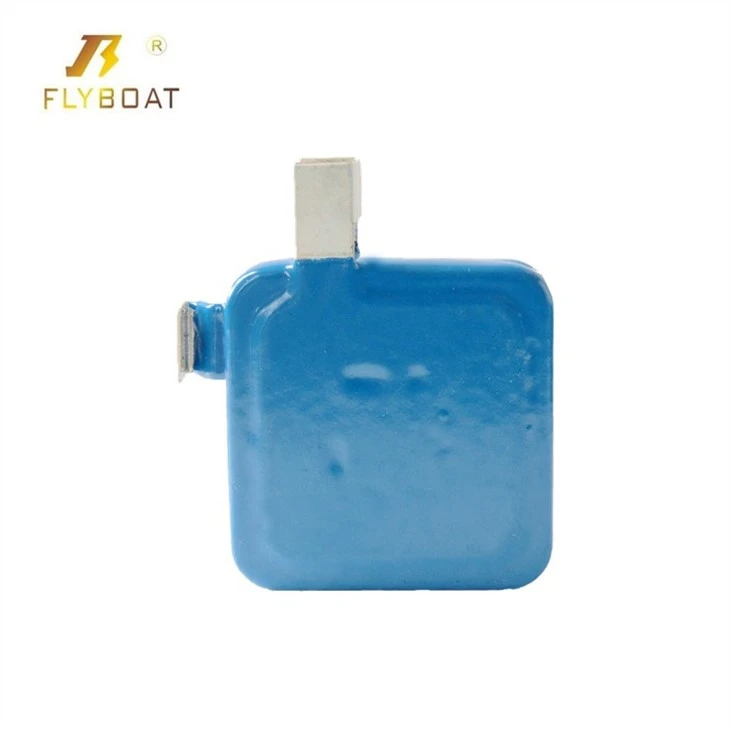

34x34mm Square Shape Epoxy Encapsulated Zinc Metal Oxide Varistor 34S 40KA For SPD

Characteristic

● Choose nanometer materials.

● Technology of power frequency breakdown point controlled.

● 2ms surge 100% screening.

● 100% screening for reliability Energized ageing.

Typical shape

The Pressure Sensitive Resistor Can Not Be Used Casually, Choose The Pressure Sensitive Resistor To Pay Attention To The Model.We Need To Understand The Following Points When Using Piezoresistors

(1) No matter how the voltage changes, its large fluctuation value cannot exceed the voltage sensitive resistance's large allowable value, if the continuous working voltage exceeds the large allowable value, the voltage sensitive resistance will reduce the service time.

(2) When the varistor is connected between the power line and the earth, it may increase the voltage between the power line and the earth for some reasons, such as not having a good grounding. The varistor equipment we use must use a higher voltage than the voltage between the power line and the earth.

(3) The voltage sensitive resistor in the process of work to absorb the current as far as possible less than the flow of the product. The varistor MOV is mainly used for surge protection of low-voltage electrical appliances, most of which are zinc oxide varistors.It is a polycrystalline semiconductor ceramic component with zinc oxide as the main body, doped with a variety of metal oxides and made of typical electronic ceramic technology.The response time of the piezoresistor is ns, which is faster than the gas discharge tube and slightly slower than the TVS tube. In general, the response speed of the piezoresistor used for the over-voltage protection of the electronic circuit can meet the requirements.

Features

1. RoHS compliant, REACH environmental protection requirements. Halogen-free series are available.

2. Body size:Φ25,Φ20,

3. Excellent clamping ratio

4. Bidirectional and symmetrical V/I characteristics

5. Large withstanding surge current capability

6. Excellent thermal stability g. Wide operating temperature range: -40～+125℃; Storage temperature range: -40～+150℃; h. Agency recognition: ul,cUL I:UL 1449 4th for SPD type 5 application

Application

1. Power Distribution

2. Communication power

3. Antenna

4. New energy

5. LED lighting

6. Rail traffic system

7. Industrial equipment

Technical parameters

Technical Parameter of Conventional 34S Series
