Customizable SPD Plastic

Green plastic solar ac dc surge protector surge arrestor accessory surge protector accessories.

Quick Details

Place of Origin:Guizhou, China

Brand Name:Flyboat

Model Number:DSC07798

Name:40 KA 4P AC Surge Voltage Protector Lightning Surge Protector SPD

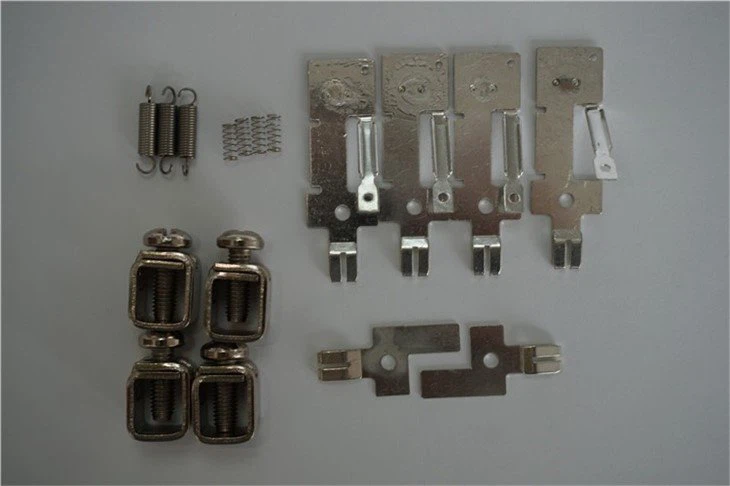

Material:Plastic parts, springs, copper strips, chips, copper parts

Color:customizable

Series:2p,3p,4p

Nominal discharge current:10KA -20KA

Protection level /UP:1.8KV,2.2KV,2.5KV,3.2KV

Product approvals:CE certification

Protection level:Secondary protection

Origin:guizhou

Brand:Flyboat

Supply Ability

200000 Piece/Pieces per Month

Packaging & Delivery

● Packaging Details: Foam & Carton

● Port: CNSZN,CNBHI

● Picture Example

● Lead Time

Video Description

Specification

About Product

1. General installation requirements of SPD

The surge protector is installed with 35MM standard guide railFor fixed SPD, the general installation should follow the following steps:

1) Determine the discharge current path

2) The wire marked for the additional voltage drop caused at the terminal of the device.

3) In order to avoid unnecessary induction loop, PE conductor of each device should be marked.

4) Equipotential connection is established between the device and SPD.

5) Multistage SPD energy coordination is requiredIn order to limit the inductive coupling between the protected and unprotected parts of the device after installation, certain measurements are required. Mutual inductance can be reduced by separating the inductive source from the sacrified circuit, selecting the loop Angle, and limiting the closed loop region. When the current-carrying component conductor is part of a closed loop, the loop and induced voltage are reduced as the conductor approaches the circuit.Generally speaking, it is better to separate the protected wire from the unprotected wire, and it should be separated from the ground wire. At the same time, necessary measurements should be made to avoid transient orthogonal coupling between power cables and communication cables.

2. Grounding wire diameter selection of SPD

1) Data line: more than 2.5mm2; When the length exceeds 0.5 meters, it is required to be greater than 4mm2. YD/T5098-1998.

2) Power line: when the cross-sectional area of phase line S≤16mm2, ground line S is used; When the cross-sectional area of the phase line is 16mm2≤S≤35mm2, the ground wire is 16mm2; When the cross-sectional area of phase line S≥35mm2, the ground line requires S/2; Clause 2.2.9 of GB 50054.

Product Description

Company Profile

GuiYang Flyboat Electronic Co., Ltd. has been founded in October 2010 by four natural persons. We have deliberately focused on metal oxide varistor (MOV), surge protected devices (SPD), and related technology services for more than 20 years. As a national high-tech enterprise, we have a strong research and development (R&D) ability and competitive technological strength. We also have a long-term close cooperation with Guizhou University and obtained patents for many extraordinary inventions. Zihao Fei is our company's legal person. He is a well-known Chinese expert in varistor technology and served in the International Electronically Commission (IEC) SC37B for 5 years and Chinese Institute of Electronics (CIE) for 15 years. He participated in drawing up the international standard: IEC61643-331.2017: Components for Low-Voltage Surge Protective Devices Part 331: Performance Requirements and Test Methods for Metal Oxide Varistors (MOV). He is also the main drafter of the national standard: GB18802.331.2020: Components for low-voltage surge protective devices Part 331: Performance requirements and test methods for metal oxide varistors (MOV). Our company has been supported by various R&D special funds. The performance of our products has reached the top level in China and been acknowledged by Chinese top manufacturers. Our products have been approved by UL and TUV safety certifications. Moreover, our company has obtained ISO 9001:2018 quality management system certification. Our well-functioned operating system ensures the consistency and stability of our product performance, which in turn creates a sustainable market competitiveness. We have built a modern standard workshop with an area of 9000 square meters, hired more than 100 skillful employees, and set up three modern production lines with annual output of 15 million 34S's standard MOV and 3 million aboard SPD. We also own a complete list of testing equipment, We have solved plenty of challenging problems in MOV and SPD production. We have also helped our clients solve many difficult problems about related technological applications and created great value for our customer. Value Belief:Do our utmost to protect the achievements of human civilization from lightning damage. Team Spirit:Loyalty. Cooperation. Diligence. Operation Advancement: Strong attention to details Transcendence through innovation:Strive to be the best one Development Strategy:Win client loyalty with excellent product performance and technical service,Create a brilliant future with professional competencies and a strong concentration Quality Policy:We strive to meet and exceed our clients' expectation.We survive and thrive with our clients' trust and satisfaction. Goals:Keep exploring, improving product performance, and striving to be the best supplier of lightning protection components in the world.

FAQ

Q1. The company's position in the industry? Is it a factory? Do OEM/ODM?

A: Flyboat®isaleadingprofessionalmanufacturerfocusingonmetaloxidevaristor(MOV)andsurge protectivedevices(SPD). WehaveourownfactoryandsupportOEMorODM.

Q2. How many years of experience do you have in industry research?

A: FoundedinOctober2010, Flyboat®hasdevotedtoMOV, SPD, andrelatedtechnologyservicesformore than20years.

Q3. (1) What are the advantages of the company?

A: Asanationalhigh-techenterprise,Flyboat®keepalong-termclosecooperationwithGuizhouUniversity, andobtainmanyextraordinarypatentsandinventions. Supportedbyvarious R& Dspecialfunds, the performanceofFlyboat®productshavereachedthetoplevelinChina. MainstreamproductsofFlyboat ® arecertificatedbyULandTüV. Wealsoparticipatedindraftingandadjustingtheinternationalstandard: IEC61643-331.2017.

Q3. (2) What are the advantages of the product?

A: 1) lSupportsawiderangeofregularvaristors(82V-1800V)

2) Supplybothlow-residual-voltageandhigh-energyindustrialdiscvaristors

3) Top-rankedproductqualityandperformance

4) SelfownpatentULTIMΛ®providessaferandmoreeffectiveprotection

5) AllFlyboat®productsareLEADFREE

Q3. (3) The difference between the company and other peers?

A: 1) LowMOQwithCompetitivePrice

2) Eachcomponentismanufacturedtoexactingqualitystandards

3) Unwaveringcommitmenttotechnicalsupportandcustomerservice

4) Modulardesignfailureindicator

5) Expertise&experience

6) FREESAMPLES

Q3. (4) What points do we use to make customers willing to find us?

1) Wewillpartnerwithyoutosolvecomplexproblemswherevervaristorsisused, bringingdesign, engineering, andtechnicalexpertisetodeliverbusinessresults.

2) Wewillprovidedecadesofdesignexperiencetohelpyouaddressapplicationchallenges.

3) Ourproductsaremanufacturedfromhighqualitymaterialswithinan ISO9001environment,toensure longlastingperformance.

Q4. Our product classification, big category? What is the main product currently?

A: lSurgeProtectiveDevices(SPD) lMetalOxideVaristor(MOV) lPlug-InModules/On-BoardModular lAccessories

Q5. Which areas are our main customers?

A: United States, France, Germany, Pakistan, India, Vietnam, Indonesia, Brazil, Mexico, Spain

Q6. The company's propaganda philosophy? The company’s cultural values? And some other special points

A: 1. ValueBelief: Doourutmosttoprotecttheachievementsofhumancivilizationfromlightningdamage.

2. TeamSpirit: Loyalty.Cooperation.Diligence.

3. OperationAdvancement: Strongattentiontodetails; Transcendencethroughinnovation; Strivetobethebestone

4. DevelopmentStrategy: Winclientloyaltywithexcellentproductperformanceandtechnicalservice. Createabrilliantfuturewithprofessionalcompetenciesandastrongconcentration

5. QualityPolicy: Westrivetomeetandexceedourclients’expectation. Wesurviveandthrivewithourclients’trustandsatisfaction.

6. Goals:Keepexploring,improvingproductperformance,andstrivingtobethebestsupplieroflightning protectioncomponentsintheworld.

Q7. Does the company have a unified color system (main color)? Can the LOGO change color because of the background?

A: The main color is blue: 46c5ee or 007dda; LOGO cannot be changed.
