Can MOV DC be used in renewable energy systems?

Renewable energy systems, such as solar and wind power, have gained significant traction in recent years as the world seeks cleaner and more sustainable energy sources. These systems come with their own set of engineering challenges, especially when it comes to protecting sensitive equipment from voltage surges. One critical component in this protection arsenal is the Metal Oxide Varistor (MOV). In this blog, we'll explore whether MOV DC can be effectively used in renewable energy systems, sharing insights as a reliable MOV DC supplier.

Understanding MOV DC and Its Function

Before diving into its application in renewable energy systems, it's essential to understand what MOV DC is. A Metal Oxide Varistor is a device with a non - linear electrical characteristic, mainly made of zinc oxide. It has low resistance when exposed to high - voltage surges, allowing it to divert excessive current, and high resistance under normal operating voltages, ensuring minimal current leakage.

The DC version of MOV, or MOV DC, is specifically designed for direct - current circuits. In a DC circuit, the voltage polarity remains constant, unlike in an AC circuit where the polarity alternates. MOV DC is engineered to handle this constant - polarity environment, protecting the equipment connected to the DC power source from voltage spikes that could occur due to lightning strikes, electrostatic discharges, or other electrical disturbances.

Challenges in Renewable Energy Systems

Renewable energy systems present unique challenges when it comes to voltage protection. Solar photovoltaic (PV) systems, for example, generate DC power. The DC voltage in a PV system can vary depending on factors such as sunlight intensity, temperature, and the number of solar panels connected in series or parallel. Wind turbines, on the other hand, often use a combination of AC and DC components. The DC part of the system, such as the battery charging circuit or the DC link in a power converter, also needs protection.

One of the main challenges is the wide range of operating voltages and the potential for high - energy surges. Lightning strikes near a solar farm or a wind turbine can induce large voltage spikes in the DC circuits. These surges can damage sensitive electronic components like inverters, charge controllers, and battery management systems. Additionally, the long - term reliability of the protection devices is crucial, as renewable energy systems are often located in remote areas where maintenance can be difficult and costly.

Why MOV DC Is a Good Fit for Renewable Energy Systems

Surge Protection Capability

MOV DC is well - suited to handle the high - energy surges in renewable energy systems. When a voltage surge occurs, the MOV DC quickly switches from a high - resistance state to a low - resistance state, diverting the excess current away from the protected equipment. This action limits the voltage across the equipment, preventing damage. For example, in a solar PV system, a lightning - induced surge can be dozens or even hundreds of times the normal operating voltage. An MOV DC can effectively clamp the voltage to a safe level, protecting the inverters and other components.

Compatibility with DC Circuits

As renewable energy systems often generate DC power, MOV DC is a natural choice for protection. It is designed to work in a DC environment, taking into account the constant polarity of the voltage. This ensures that it can provide reliable protection over the long term without being affected by issues such as the reverse - bias breakdown that could occur in a device not optimized for DC.

High - Energy Handling Capacity

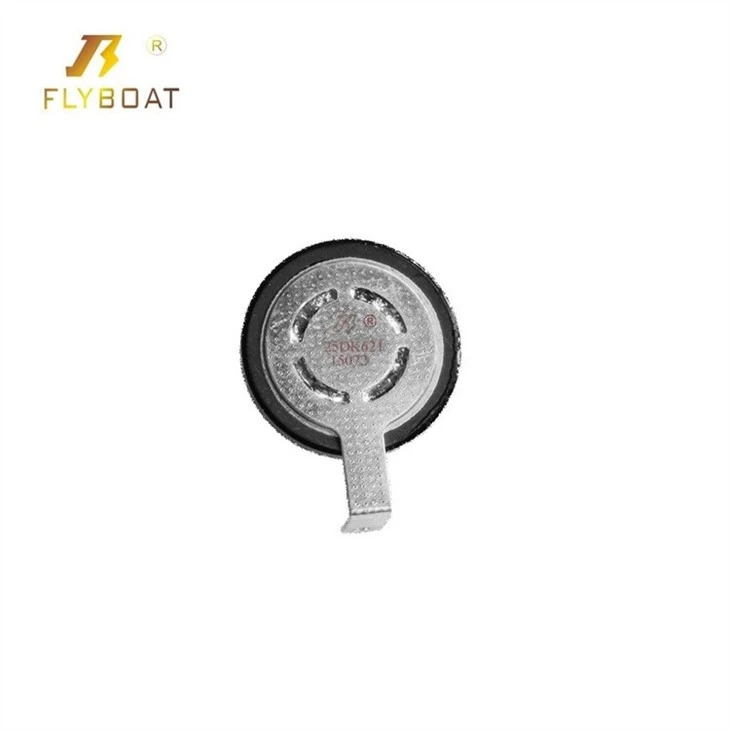

Renewable energy systems may experience high - energy surges, especially in areas prone to lightning. MOV DCs are available in various energy - handling capacities. Products like the High Energy Suppressor Discs are specifically designed to handle large amounts of energy, making them suitable for use in high - power renewable energy installations. These high - energy MOV DCs can absorb the energy from a surge without being damaged, providing multiple protection events during their lifespan.

Selecting the Right MOV DC for Renewable Energy Systems

When choosing an MOV DC for a renewable energy system, several factors need to be considered.

Voltage Rating

The voltage rating of the MOV DC should be carefully selected based on the normal operating voltage of the system. It should be high enough to withstand the normal DC voltage without conducting significant current but low enough to clamp the voltage during a surge. For example, in a 48V DC battery system in a wind turbine, an MOV DC with an appropriate clamping voltage should be chosen to protect the battery and associated electronics.

Energy Rating

As mentioned earlier, the energy rating is crucial, especially in areas with high lightning activity. The MOV DC should be able to handle the maximum expected surge energy. The Industrial High Energy Varistor offers high energy - handling capabilities, which can be a great choice for large - scale renewable energy projects.

Response Time

The response time of the MOV DC is also important. A fast - acting MOV DC can quickly respond to a surge, minimizing the time that the protected equipment is exposed to high voltages. This is particularly important in modern renewable energy systems, where electronic components are becoming more sensitive and vulnerable to voltage spikes.

Case Studies: MOV DC in Renewable Energy Systems

Let's look at a couple of real - world examples to illustrate the effectiveness of MOV DC in renewable energy systems.

Solar PV Installation in a Lightning - Prone Area

A solar PV farm in a region with frequent lightning strikes was experiencing repeated damage to its inverters and charge controllers. After installing high - quality MOV DCs with appropriate voltage and energy ratings, the number of equipment failures due to voltage surges dropped significantly. The 34S Metal Oxide Varistor was used in this installation, providing reliable surge protection and ensuring the continuous operation of the solar PV system.

Wind Turbine DC Link Protection

In a wind turbine installation, the DC link in the power converter was vulnerable to voltage surges. By installing MOV DCs specifically designed for the DC link's voltage and energy requirements, the risk of damage to the power converter was greatly reduced. This not only improved the reliability of the wind turbine but also extended the lifespan of the expensive power - conversion equipment.

Conclusion and Call to Action

In conclusion, MOV DC can indeed be used effectively in renewable energy systems. Its ability to provide surge protection, compatibility with DC circuits, and high - energy handling capacity make it an ideal choice for safeguarding sensitive equipment in solar, wind, and other renewable energy installations.

If you are involved in the renewable energy industry and are looking for reliable MOV DC solutions for your projects, we are here to help. As a professional MOV DC supplier, we offer a wide range of products with different voltage, energy, and response - time specifications to meet your specific needs. Whether you are working on a small - scale solar installation or a large - scale wind farm, we can provide the right MOV DC components for you. Contact us to discuss your requirements and start a procurement negotiation today.

References

• Ohm's Law and Varistor Applications. Electrical Engineering Handbook.
• Lightning Protection Guide for Renewable Energy Systems. IEEE Standards Association.
